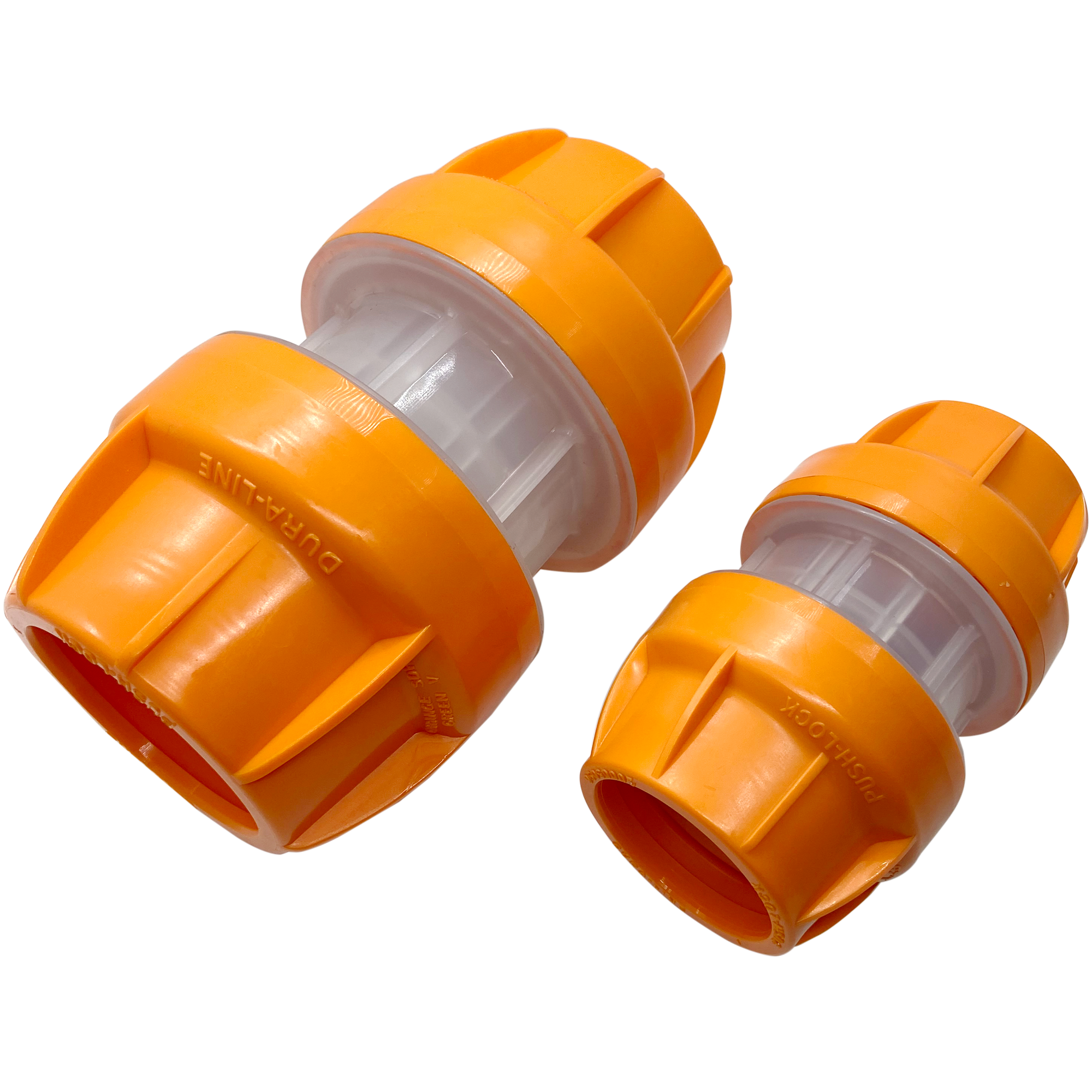

Clear-Lock

Experience the same fast and easy installation of our Push-Lock couplers now with a new, clear body design. Simply push the duct ends into the coupler for a locked and air-sealed assembly. Slightly shorter than the original Push-Lock, the Clear-Lock is ideal for pull boxes, vaults or other limited access areas. The non-metallic construction provides excellent corrosion resistance in buried or encased applications and also has desirable dielectric properties.
Experience the same fast and easy installation of our Push-Lock couplers now with a new, clear body design. Simply push the duct ends into the coupler for a locked and air-sealed assembly. Slightly shorter than the original Push-Lock, the Clear-Lock is ideal for pull boxes, vaults or other limited access areas. The non-metallic construction provides excellent corrosion resistance in buried or encased applications and also has desirable dielectric properties.

Features

  • The clear midsection gives added visibility during installation, removing all guesswork from the process
  • The visual confirmation of the pipe within the coupler ensures that it has been properly seated at the center stop
  • Simple, one person ‘push-on’ assembly lowers installation costs
  • Self-locking ring design assembles in seconds and is re-enterable
  • High strength molded plastic body is ideal for buried duct applications
  • Pre-lubricated O-ring is water-tight and air-tight
  • Suitable for both cable pulling & jetting applications
Ask your question
Clear-Lock

Technical Specifications

Part # Description OD Working Range (in) Height (in) Max Pressure (psi) Pull Out Strength (lb) Packaging Coupler Box Dimensions
20005663 1 1/2" Clear-Lock 1.890 - 1.910 5.5 250 800 Each 16Lx16Wx6.5H
20005096 1 1/4" Clear-Lock 1.650 - 1.670 5 250 700 Each 14.5Lx14.5Wx11H
20005662 1" Clear-Lock 1.305 - 1.325 3.6 250 600 Each 12.5Lx10.5Wx8H
20005878 1/2" Clear-Lock 0.830 - 0.850 2.7 250 400 Each 14Lx11Wx9.5H
20005097 2" Clear-Lock 2.365 - 2.385 7 250 2000 Each 19Lx12.5Wx9H
20005661 3/4" Clear-Lock 1.040 - 1.060 3 250 500 Each 14Lx11Wx9.5H

Downloads

Specifications
DL_Clear-Lock Coupler_8.24
Clear-Lock Illustrated Instructions
