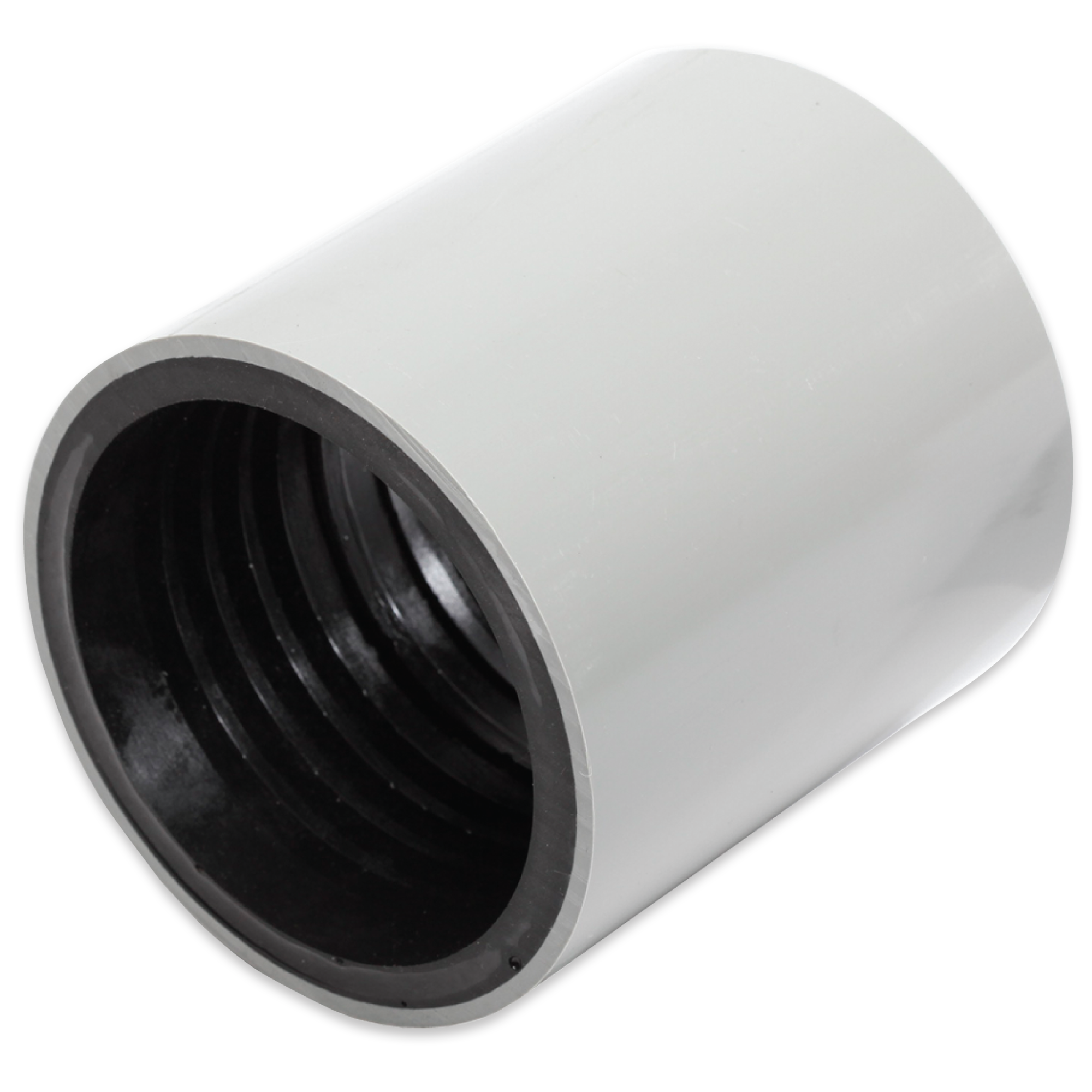

E-LOC

A low-cost push-on coupler with a molded rubber gripping insert. Can be used on HDPE, PVC, Fiberglass (FRE), and metal conduit. Transition couplers are used to join ducts with different outside diameters.
A low-cost push-on coupler with a molded rubber gripping insert. Can be used on HDPE, PVC, Fiberglass (FRE), and metal conduit. Transition couplers are used to join ducts with different outside diameters.

Features

  • Fast push-on installation
  • Inexpensive, one person installation
  • Low pull-out strength
  • Not recommended for blowing or plow chute applications
Ask your question
E-LOC

Technical Specifications

Select Coupler Type

Classic
Classic
Corrugated
Transition
Part # Description Nominal OD (in.) OD Working Range (in) Height (in) Packaging
20005179 6.00" SDR E-LOC 12" Length 6.625 6.592 - 6.658 12 Each
20001509 0.50" SDR E-LOC Coupler 0.84 0.836 - 0.844 6 Each
20001948 0.75" SDR E-LOC Coupler 1.05 1.045 - 1.055 6 Each
20001510 1.00" SDR E-LOC Coupler 1.315 1.308 - 1.322 6 Each
20001511 1.25" SDR E-LOC Coupler 1.66 1.652 - 1.668 6 Each
20001512 1.50" SDR E-LOC Coupler 1.9 1.890 - 1.910 6 Each
20001513 2.00" SDR E-LOC Coupler 2.375 2.363 - 2.387 6 Each
20001514 2.50" SDR E-LOC Coupler 2.875 2.861 - 2.889 6 Each
20001502 3.00" SDR E-LOC Coupler 3.5 3.482 - 3.518 6 Each
20001014 4.00" SDR E-LOC 6" Length 4.5 4.477 - 4.523 6 Each
20002844 4.00" SDR E-LOC 8" Length 4.5 4.477 - 4.523 8 Each
20003131 4.00" SDR E-LOC 12" Length 4.5 4.477 - 4.523 12 Each
20002812 5.00" SDR E-LOC Coupler 5.563 5.535 - 5.591 6 Each
20001503 6.00" SDR E-LOC 6" Length 6.625 6.592 - 6.658 6 Each
20003134 6.00" SDR E-LOC 8" Length 6.625 6.592 - 6.658 8 Each
20003118 8.00" SDR E-LOC Coupler 8.625 8.582 - 8.668 8 Each
20094597 2.00" SDR E-LOC 12" Length 2.375 2.363 - 2.387 12 Each
20094598 5.00" SDR E-LOC 12" Length 5.563 5.535 - 5.591 12 Each
20001504 1.00" E-LOC Corrugated Coupler 1.35 1.350 6 Each
20003132 1.25" E-LOC Corrugated Coupler 1.575 1.575 6 Each
20002811 1.50" E-LOC Corrugated Coupler 1.83 1.830 6 Each
20003209 2.00" E-LOC Corrugated Coupler 2.35 2.350 6 Each
20001501 1.25" - 2.00" SDR Transition E-LOC Coupler - 1.660 - 2.375 6 Each
20001842 1.50" - 2.00" SDR Transition E-LOC Coupler - 1.900 - 2.375 6 Each
20001942 2.00" - 3.00" SDR Transition E-LOC Coupler - 2.375 - 3.500 6 Each
20005345 1.00" - 1.25" SDR Transition E-LOC Coupler - 1.315 - 1.660 6 Each
20003710 3.00" - 4.00" SDR Transition E-LOC Coupler - 3.500 - 4.500 6 Each
20094903 1.25" - 1.50" SDR Transition E-LOC Coupler - 1.660 - 1.900 6 Each

Downloads

Specifications
DL_ELOC Coupler 3.2024
