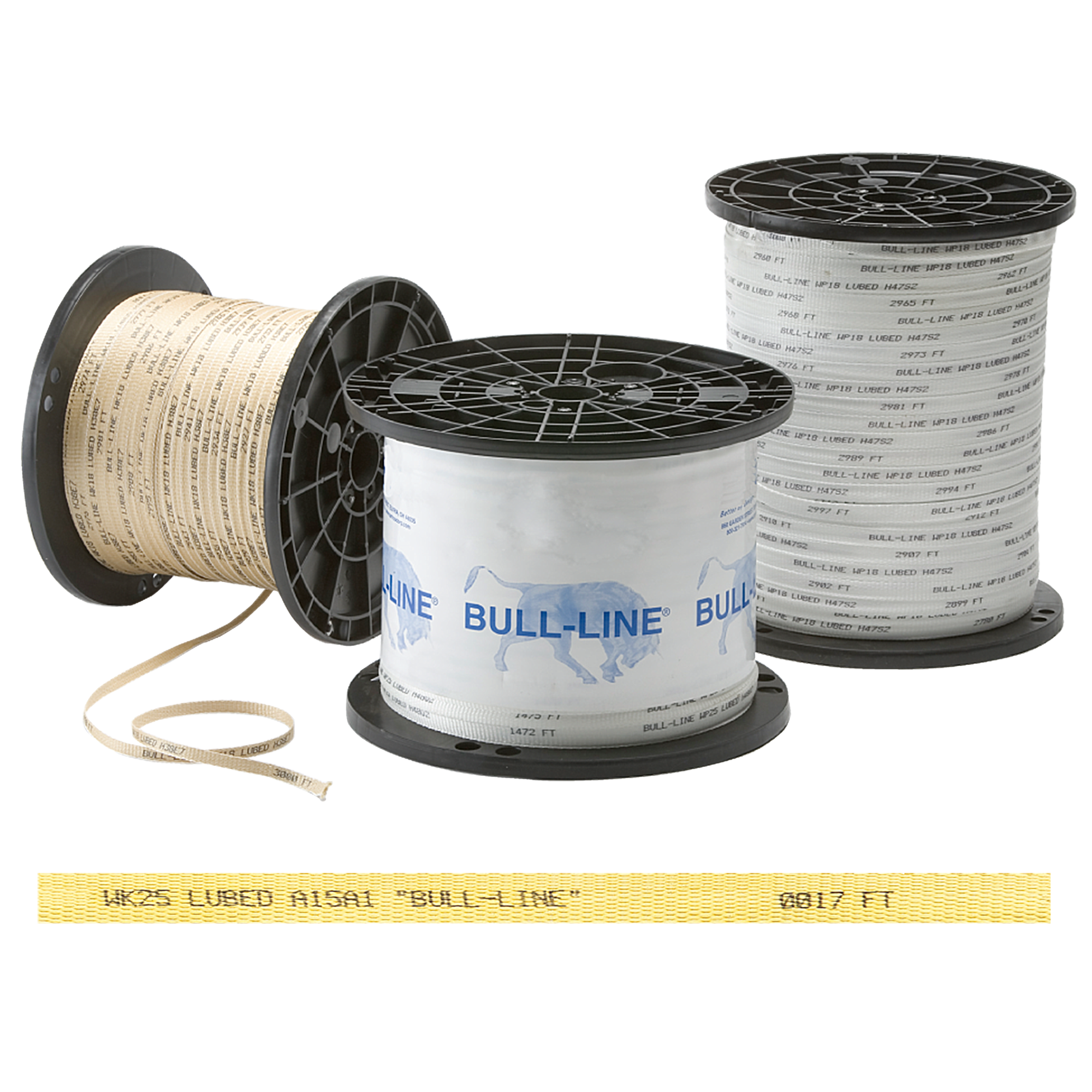

Aramid Tape
Bull-Line Aramid Pull Tape offers the highest tensile strength per widths along with low elongation. These tapes are also sequentially marked in feet or meters for accurate installation measurements. Bull-Line Aramid Pull Tape is made in the USA.
Features
- High strength, low stretch
- Very good burn-through (conduit cutting) resistance
- Excellent blowability into conduit
- Accurate sequential foot or meter markings
- Available on reels in a wide variety of continuous lengths
- Can be factory pre-installed into conduit
- Tensile strength range 1,800 lbs - 2,500 lbs
Technical Specifications
Select Tensile Strength
1800
1800
2500
| Part # | Description | Approx Tape Width (in.) | Length (ft) | Length (m) | Reel Size (in) | Reel Weight (lb) | # Reels/Pallet | Total Pallet Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| 20000132 | Bull-Line Aramid Tape WK18 1000ft | 0.5 | 1000 | - | 8 | 5 | 100 | 551 |
| 20000036 | Bull-Line Aramid Tape WK18 3000ft | 0.5 | 3000 | - | 12 | 12.7 | 48 | 660.6 |
| 20002173 | Bull-Line Aramid Tape WK18 5000ft | 0.5 | 5000 | - | 13 | 19.8 | 36 | 763.8 |
