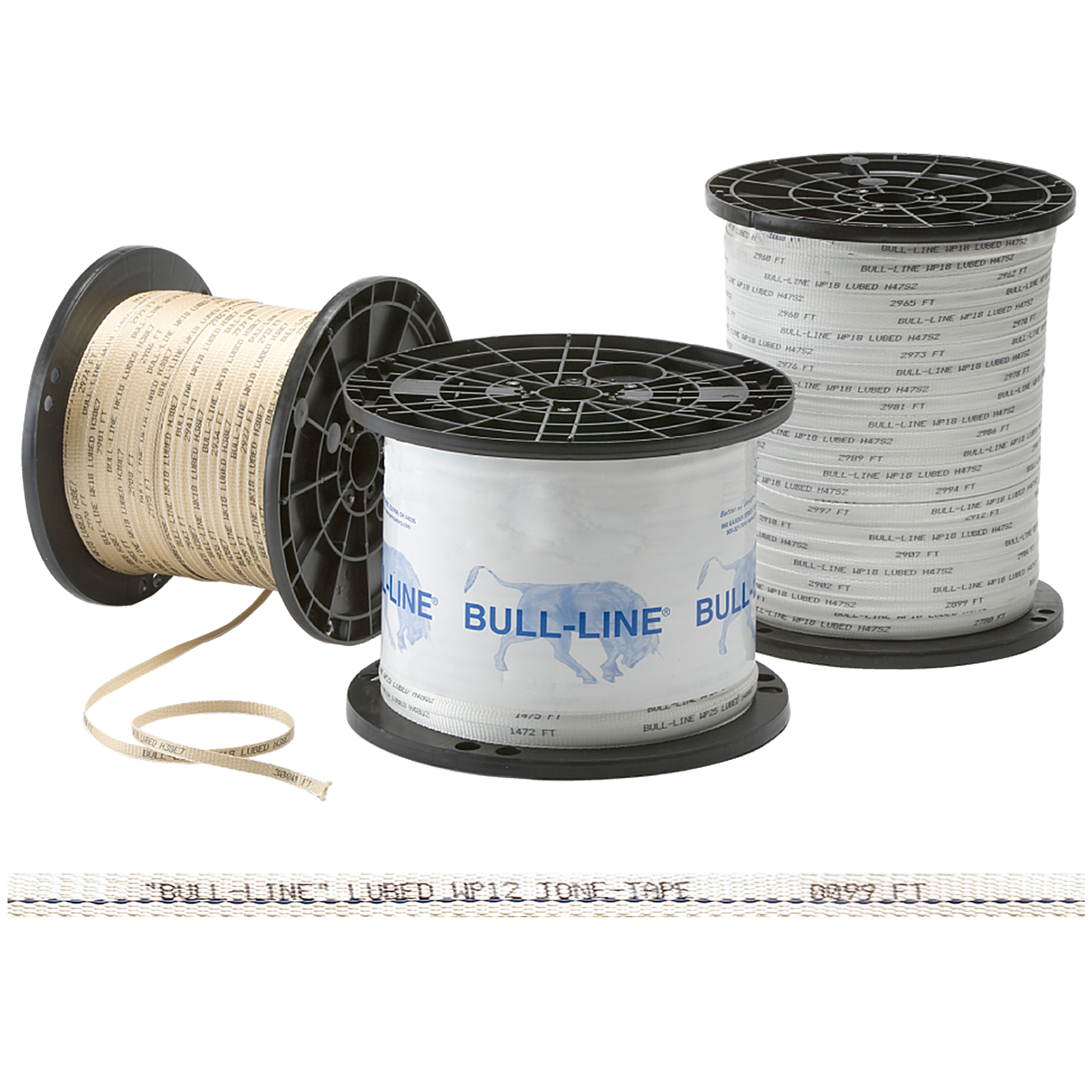

Locatable Tape

Bull-Line Locatable Tape is offered with a tracer wire for signal locating. The tracer wire is woven into Bull-Line Polyester Tape and provides a corrosion resistance conductor that is easily spliced in the field. Bull-Line Locatable Tape is made in the USA.
Bull-Line Locatable Tape is offered with a tracer wire for signal locating. The tracer wire is woven into Bull-Line Polyester Tape and provides a corrosion resistance conductor that is easily spliced in the field. Bull-Line Locatable Tape is made in the USA.

Features

  • Incorporates a tracer wire for signal locating
  • Corrosion resistant fibers and conductor
  • Accurate sequential foot or meter markings
  • Wire conductors can be easily spliced in the field
  • Can be factory pre-installed into conduit
  • 22AWG (Solid) BC Semi-Rigid PVC Insulated 300V
  • Conductor diameter 0.025 inches
  • Tensile strength range 500 lbs - 2,500 lbs
Locatable Tape

Technical Specifications

Select Tensile Strength

500
500
1000
1250
1800
2500
Part # Description Approx Tape Width (in.) Length (ft) Length (m) Reel Size (in) Reel Weight (lb) # Reels/Pallet Total Pallet Weight (lb)
20000323 Bull-Line Locatable Tape WP05LC 5000ft 0.25 5000 - 12 30.4 48 1510.2
20002194 Bull-Line Locatable Tape WP10LC 3000ft 0.4375 3000 - 13 29.4 36 1109
20000140 Bull-Line Locatable Tape WP12LC 1000ft 0.5 1000 - 8 11.8 100 1231
20000059 Bull-Line Locatable Tape WP12LC 3000ft 0.5 3000 - 13 33.2 36 1246.2
20000061 Bull-Line Locatable Tape WP12LC 5000ft 0.5 5000 - 14 55 36 2031
20000058 Bull-Line Locatable Tape WP12LC 10000ft 0.5 10000 - 18 108 10 1131
20003874 Bull-Line Locatable Tape WP18LC 1000m 0.625 - 1000 16 47.4 18 903.8
20003890 Bull-Line Locatable Tape WP18LC 1800m 0.625 - 1800 16 81.8 18 1522.7
20000225 Bull-Line Locatable Tape WP18LC 500ft 0.625 500 - 8 8.1 100 856
20000221 Bull-Line Locatable Tape WP18LC 1000ft 0.625 1000 - 12 15.3 48 785.4
20000328 Bull-Line Locatable Tape WP18LC 900m 0.625 - 900 14 42.2 36 1569.5
20000163 Bull-Line Locatable Tape WP18LC 3000ft 0.625 3000 - 14 42.8 36 1591.8
20000313 Bull-Line Locatable Tape WP18LC 5000ft 0.625 5000 - 16 69.9 18 1309.2
20000384 Bull-Line Locatable Tape WP18LC 5500ft 0.625 5500 - 16 76.5 18 1427.1
20002191 Bull-Line Locatable Tape WP18LC 2000m 0.625 - 2000 16 90.4 18 1677.4
20002187 Bull-Line Locatable Tape WP18LC 10000ft 0.625 10000 - 18 136 10 1411
20003862 Bull-Line Locatable Tape WP25LC 2000m 0.75 - 2000 22 117.6 8 992.1
20000279 Bull-Line Locatable Tape WP25LC 1000ft 0.75 1000 - 12 19 48 963
20000155 Bull-Line Locatable Tape WP25LC 3000ft 0.75 3000 - 16 54.8 18 1037.4
20000174 Bull-Line Locatable Tape WP25LC 5000ft 0.75 5000 - 16 88.4 18 1642.2
20003588 Bull-Line Locatable Tape WP25LC 900m 0.75 - 900 16 54 18 1023.1
