Distribution Box

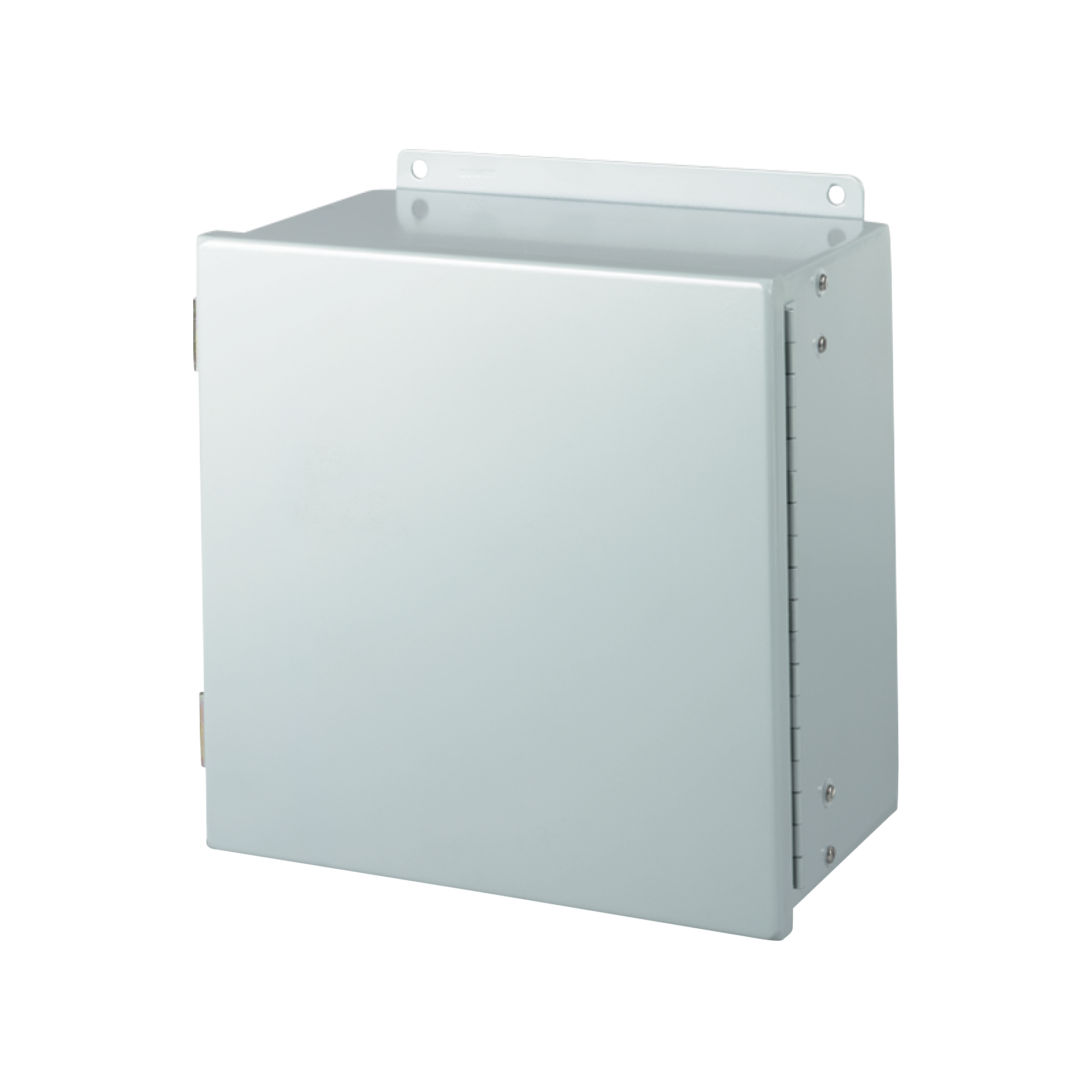

The MicroDuct Distribution Box (MDB) is a convenient indoor junction box where multiple MicroDucts can be joined together. The box is used in conjunction with FuturePath Enclosure Connectors. The hinge door gives users easy access while providing protection from dirt, dust, and water.
The MicroDuct Distribution Box (MDB) is a convenient indoor junction box where multiple MicroDucts can be joined together. The box is used in conjunction with FuturePath Enclosure Connectors. The hinge door gives users easy access while providing protection from dirt, dust, and water.

Features

  • NEMA 12 JIC 1 Door Continuous Hinge Wall Mount
  • Body fabricated from 14-gauge steel and doors fabricated from 16-gauge steel
  • Top and bottom external mounting plates
  • Closed-cell oil-resistant neoprene gasket sealed lids
  • Continuously-welded seams
  • External screw clamps
  • ANSI 61 gray polyester powder light texture inside and out over phosphatized surfaces
Ask your question
Distribution Box

Technical Details

Part # Description
20002884 16x14x8 NEMA 12 Distribution Box
20003021 20x20x7 NEMA 12 Distribution Box

Downloads

Specifications
DL_Distribution Box 12.2024
