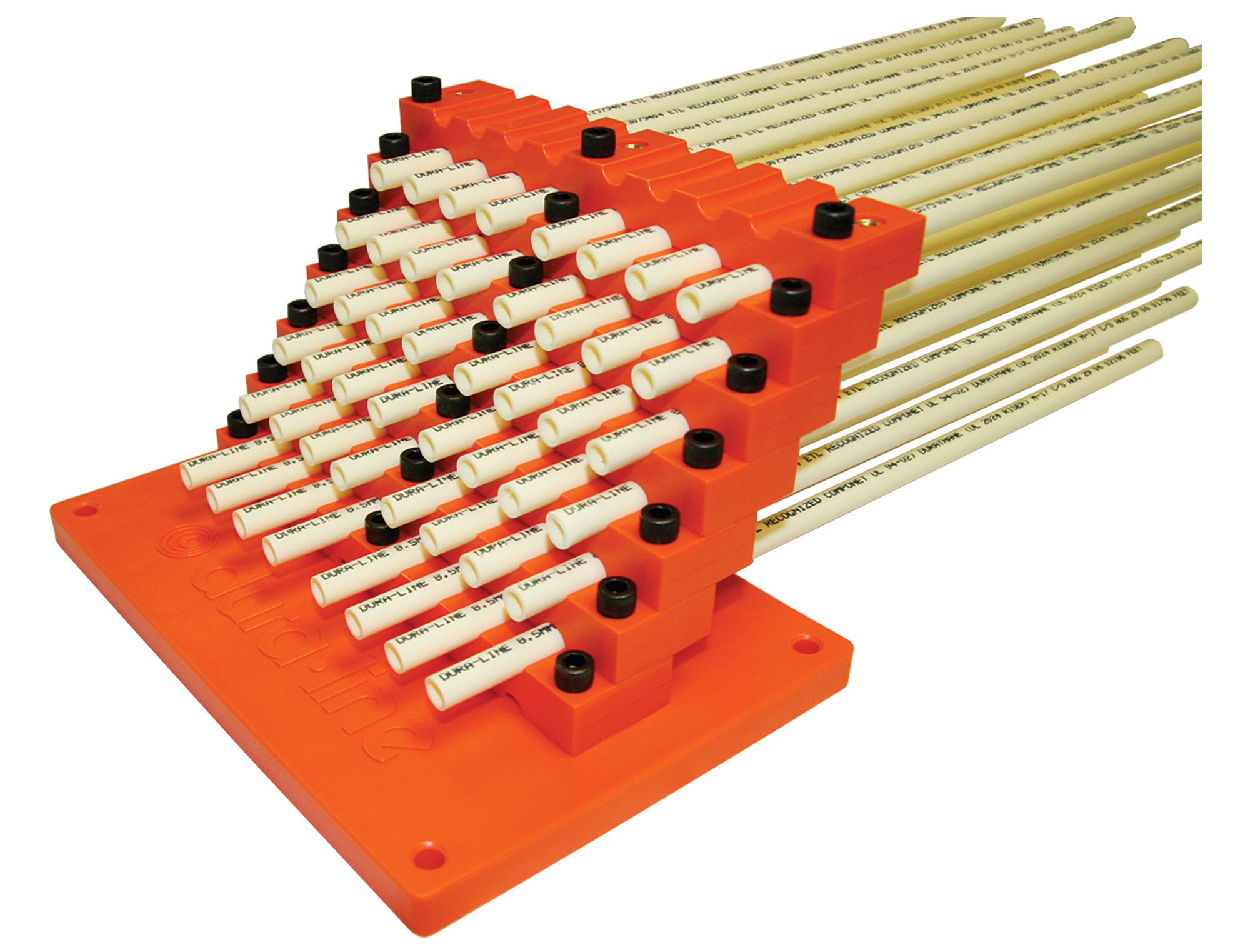

MicroDuct Organizer

The MicroDuct Organizer was designed to arrange MicroDucts at termination. It’s small and compact, requiring a minimum amount of mounting space. The modular design allows ordering additional brackets as needed.
The MicroDuct Organizer was designed to arrange MicroDucts at termination. It’s small and compact, requiring a minimum amount of mounting space. The modular design allows ordering additional brackets as needed.

Features

  • Ideal to organize MDU installations
  • Modular System can expand to hold multiple MicroDucts
  • Wall Mounting Plate – attaches base to wall
  • Mounting Bracket – secures each row of MicroDucts
  • Additional Brackets can be ordered for expansion
  • Supported with Technical Bulletin for Installation Instructions
Ask your question
MicroDuct Organizer

Technical Details

Part #
20005869
Description
22mm MicroDuct Wall Mounting Plate
Part #
20005870
Description
22mm MicroDuct Mounting Bracket
Part #
20001783
Description
MicroDuct Mounting Bracket Screws - Steel 50/pack
Part #
20005867
Description
18mm MicroDuct Wall Mounting Plate
Part #
20001719
Description
8.5mm MicroDuct Mounting Bracket
Part #
20001929
Description
12.7mm MicroDuct Mounting Bracket
Part #
20003575
Description
16mm MicroDuct Mounting Bracket
Part #
20095456
Description
27mm MicroDuct Wall Mounting Plate
Part #
20095457
Description
27mm MicroDuct Mounting Bracket
Part #
20005868
Description
18mm MicroDuct Mounting Bracket
Part #
20093818
Description
8.5mm MicroDuct Wall Mounting Plate
Part #
20093819
Description
12.7mm MicroDuct Wall Mounting Plate
Part #
20093820
Description
16mm MicroDuct Wall Mounting Plate

Downloads

Specifications
DL_Mounting Bracket 11.24
