UL Flex Duct

UL Flex Duct is a flexible PVC duct that eliminates the need for special preformed bends. Sizes 1/2" - 4" are UL listed, UV resistant, and offer excellent cable protection from ground line to meter/service box

UL Flex Duct is a flexible PVC duct that eliminates the need for special preformed bends. Sizes 1/2" - 4" are UL listed, UV resistant, and offer excellent cable protection from ground line to meter/service box

Features

Non-metallic, liquid-tight flexible conduit
UL listed for sizes 1/2" - 4" (1660, Type B)
Sunlight (UV) resistant
Flexible PVC: eliminates the need for special preformed bends
Excellent cable protection from ground line to meter/service box
Used for cable protection and above and below ground installation applications
UL listed for use in continuous temperatures from 105°C (221°F) Dry, 60°C (140°F) Wet, or 80°C (176°F) Dry, 60°C (140°F) Wet, 70°C (158°F) oil resistant or less.
Use fittings identified for Type B conduit or liquid-tight flexible metal conduit. FNMC-B is directly marked on non-metallic fittings that are intended for integral conduit.

Details

UL Flex Duct is a flexible PVC duct that eliminates the need for special preformed bends. Sizes 1/2" - 4" are UL listed, UV resistant, and offer excellent cable protection from ground line to meter/service box

Quick Links

Specifications and Shipping Info

Choose Conduit Size

Product name

Select Size and Wall Dimensions above

Downloads

Technical Data Sheet

UL Flex Duct-12.2020

Colors

Gray

Gray

Tech Center

Take a look at our new digital tools and discover what MicroTechnology can do for your next project!

Digital Tools and Calculators

Take a look at our new digital tools and discover what MicroTechnology can do for your next project!

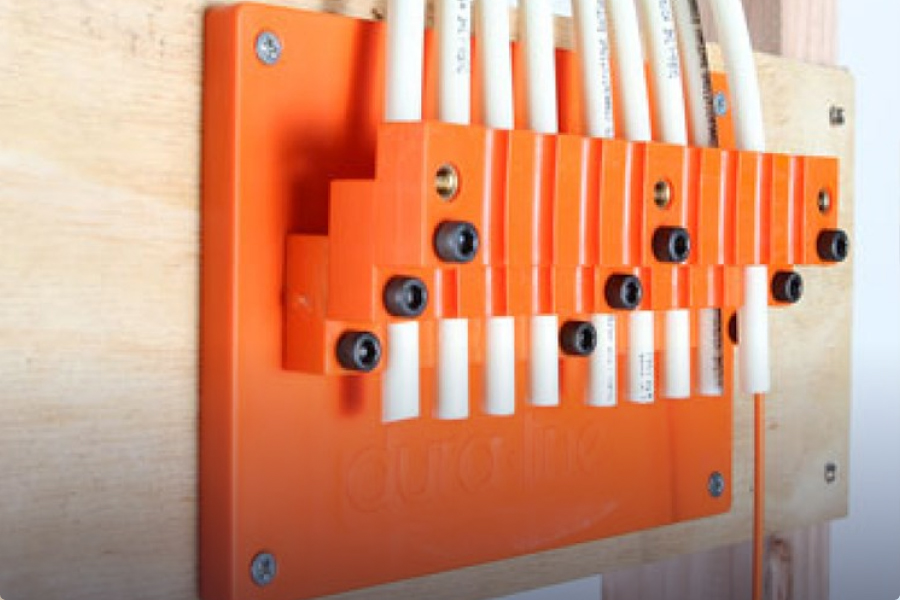

Learn more about how conduit is used in MDUs. This type of construction has its own special needs and Dura-Line has specialty products to fit every scenario.
