PowerGuard® Flex
PowerGuard® Flex is lightweight, continuous length conduit for direct bury or concrete encasement. This product is ideal for all buried cables up to and including 69kv. CSA C22.2 #327-18 approved and currently available in 103mm (4").
Features
- PowerGuard® Flex is listed to CSA C22.2 NO.327 for electrical applications
- PowerGuard® Flex is made of HDPE compound with a minimum cell classification of PE334420C or E in accordance with ASTM D3350
- Suitable for use with low and medium voltage cables
- Can be installed underground everywhere CSA certified PVC conduit or duct can be installed
- Unlike PVC duct, PowerGuard® Flex HDPE conduit is extruded in continuous lengths allowing for installation by open trench and plowing in a continuous length with minimal glued joints
- Flexible: Reduces/eliminates sweeps and bends
- Crush resistant: Equivalent to Schedule 40 or Type DBII PVC
- Lightweight: Easier installation, 40% lighter than PVC
- Compatibility: Easily adapts to other conduit materials

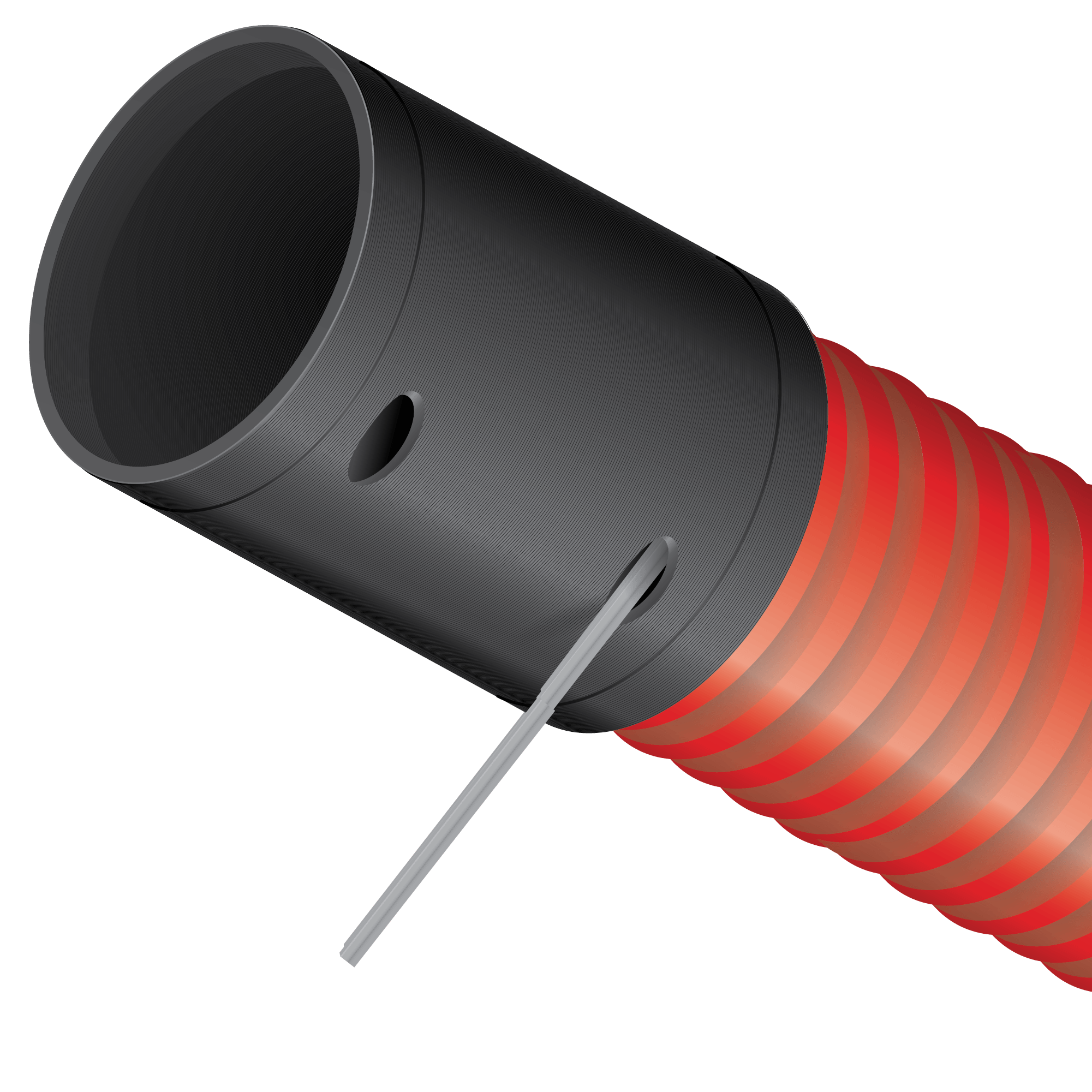

- Glueless Coupling: The gasketed, air- and water-tight coupler offers a quick and safe assembly
- Low COF: Longer cable pulls with lower cable stress
Details
Specifications and Shipping Info
Select Conduit Size
Nominal Size
Downloads
Technical Data Sheet
