FuturePath Flex

Leading the way in MicroDuct Technology, we developed FuturePath Flex to meet specific MDU and saw cut (MicroTrenching) installation requirements. FuturePath Flex's preconfigured bundles will save on installation time and add versatility and expansion opportunities to your network.
Leading the way in MicroDuct Technology, we developed FuturePath Flex to meet specific MDU and saw cut (MicroTrenching) installation requirements. FuturePath Flex's preconfigured bundles will save on installation time and add versatility and expansion opportunities to your network.
Configure

Features

  • MicroDucts joined by a thin web of HDPE, allowing for easy separation and routing of individual ducts
  • Configurations: 8-way, 6-way, 4-way or 2-way
  • Flat shape allows installation in narrow slits, saw cuts, direct buried (traditional trenching) or horizontally drilled (bored) applications
  • Can be placed vertically, horizontally, or rolled into a round shape for vibratory plow or directional drilling
  • Ideal for Micro-Trenching, resulting in reduced soil removal and impact to the right-of-way
  • FuturePath is designed for installation using the same tools and equipment used for traditional conduit. No special tools or equipment are required.
  • Multiple pathways in place for future growth

Details

  • Footage/Meter Markings
  • Internal Ribs

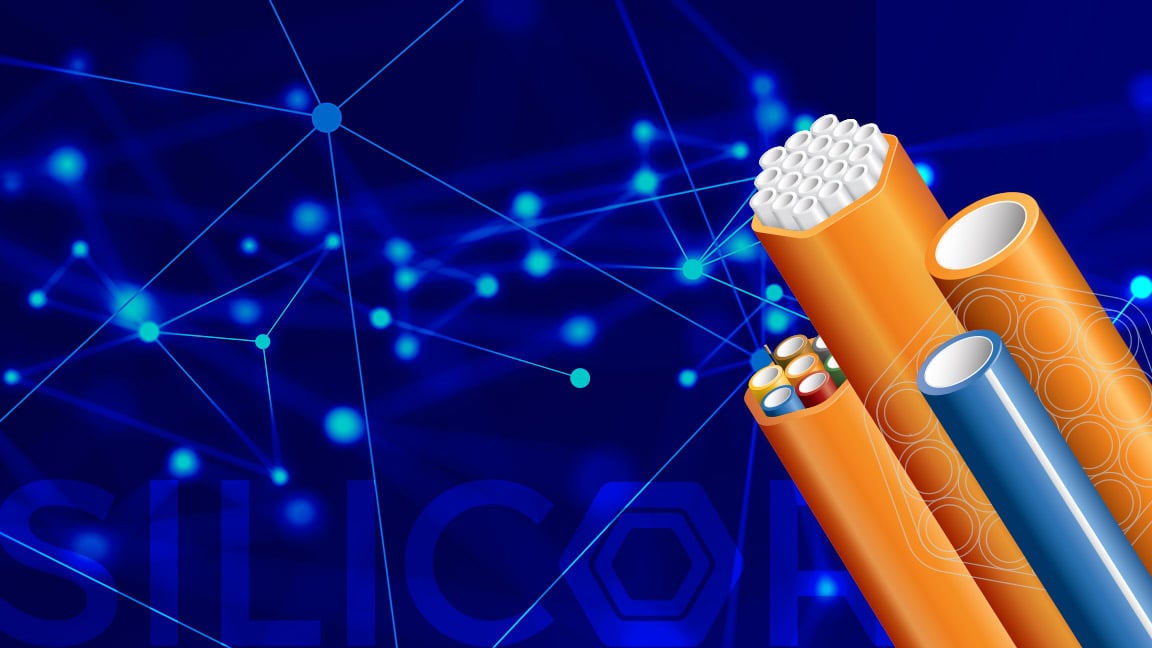

  • Silicore® ULF
Leading the way in MicroDuct Technology, we developed FuturePath Flex to meet specific MDU and saw cut (MicroTrenching) installation requirements. FuturePath Flex's preconfigured bundles will save on installation time and add versatility and expansion opportunities to your network.

Quick Links

Tech Center

Specifications and Shipping Info

Choose the Configuration (# of pathways), then the MicroDuct size
Configuration
MicroDuct (OD/ID)

Select Configuration and MicroDuct size above

Send

From

To

Downloads

Technical Data Sheet
DL_FP Flex 5.23

Colors

white
white
Red
Red
Yellow
Yellow
Terra cotta
Terra cotta
Green
Green
Gray
Gray
Brown
Brown
Blue
Blue
Black
Black
Orange
Orange

Installations

Applications

Related products

Micro Couplers are used to join two segments of MicroDucts. Straight and Transition couplers are available. Multiple sizes available starting at 5 mm

Micro Couplers

Micro Couplers are used to join two segments of MicroDucts. Straight and Transition couplers are available. Multiple sizes available starting at 5 mm
Seal the ends of your MicroDucts with Micro End Caps. Sizes available from 5mm to 27mm.

Micro End Caps

Seal the ends of your MicroDucts with Micro End Caps. Sizes available from 5mm to 27mm.
Using the correct tool for the job makes all the difference. Choose from a variety of cutters designed with a special purpose in mind - making the job go safely, smoothly, and quickly.

MicroDuct Cutters

Using the correct tool for the job makes all the difference. Choose from a variety of cutters designed with a special purpose in mind - making the job go safely, smoothly, and quickly.
The MicroDuct Organizer was designed to arrange MicroDucts at termination. It’s small and compact, requiring a minimum amount of mounting space. The modular design allows ordering additional brackets as needed.

MicroDuct Organizer

The MicroDuct Organizer was designed to arrange MicroDucts at termination. It’s small and compact, requiring a minimum amount of mounting space. The modular design allows ordering additional brackets as needed.
