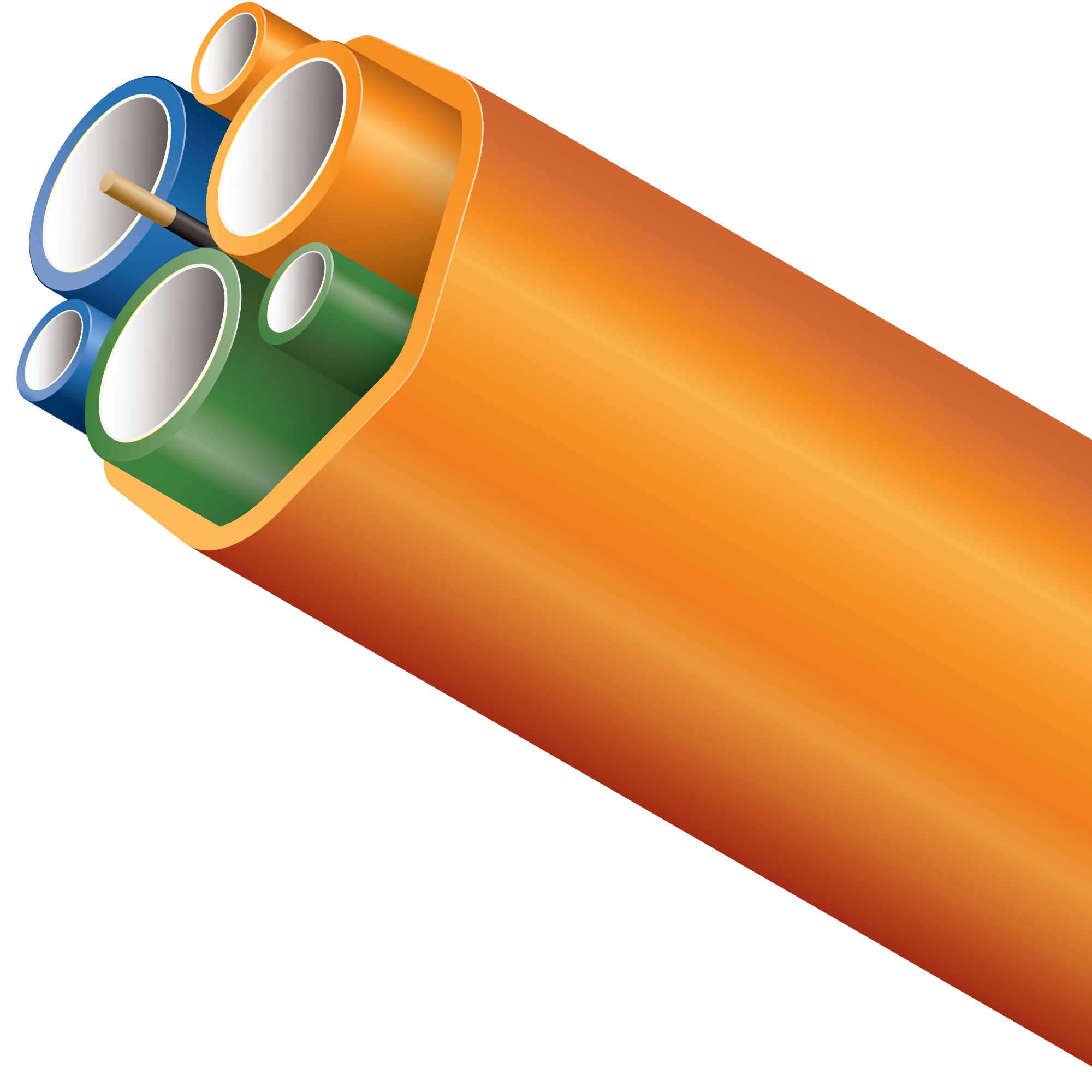

FuturePath Hybrid

Micro Couplers are used to join two segments of MicroDucts. Straight and Transition couplers are available. Multiple sizes available starting at 5 mm

Seal the ends of your MicroDucts with Micro End Caps. Sizes available from 5mm to 27mm.

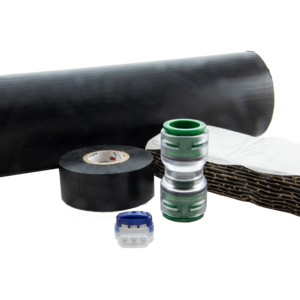

FuturePath Splice Kits provide all the necessary components to join segments of FuturePath. Kits include correct size of sleeve, couplers, sealant strips, vinyl tape and locate wire connector.

Using the correct tool for the job makes all the difference. Choose from a variety of cutters designed with a special purpose in mind - making the job go safely, smoothly, and quickly.

The MicroDuct Organizer was designed to arrange MicroDucts at termination. It’s small and compact, requiring a minimum amount of mounting space. The modular design allows ordering additional brackets as needed.

Recommended MicroDuct and FuturePath enclosure connector for OSP applications. Used to join Dura-Line's MicroTechnology products to assorted cabinets. Bulkhead Connectors are also available in sizes 8.5mm and 12.7mm

Bull-Line 100% Polyester Pull Tape provides a competitive solution for applications that require a high tensile strength and low elongation. Bull-Line Pull Tape is lightweight and has good blowability. Bull-Line Pull Tape has low burn through resistance in comparison to other brands. An added benefit of all Bull-Line Pull Tapes are the durable print and sequential markings, in both feet or meters, for accurate locating during installation. Bull-Line Pull Tape is made in the USA.

The MicroDuct Distribution Box (MDB) is a convenient indoor junction box where multiple MicroDucts can be joined together. The box is used in conjunction with FuturePath Enclosure Connectors. The hinge door gives users easy access while providing protection from dirt, dust, and water.

HydraLube® AT-500 is a high performance silicone lubricant formulated specifically for use with compressed air-assisted cable blowing, jetting and pushing systems. These systems inject a high volume of air into the conduit which will rapidly dry out conventional cable placement lubricants (including silicone-based) and cause surface stickiness. Futhermore, the initial temperature of the compressed air can be very high, which will accelerate drying of the lubricant. HydraLube® AT-500 deposits a special low friction silicone coating on the conduit wall surface that is resistant to the drying effects of the rapid air movement and high heat. This product is fully compatible with cable jackets and HDPE or PVC conduit systems.
