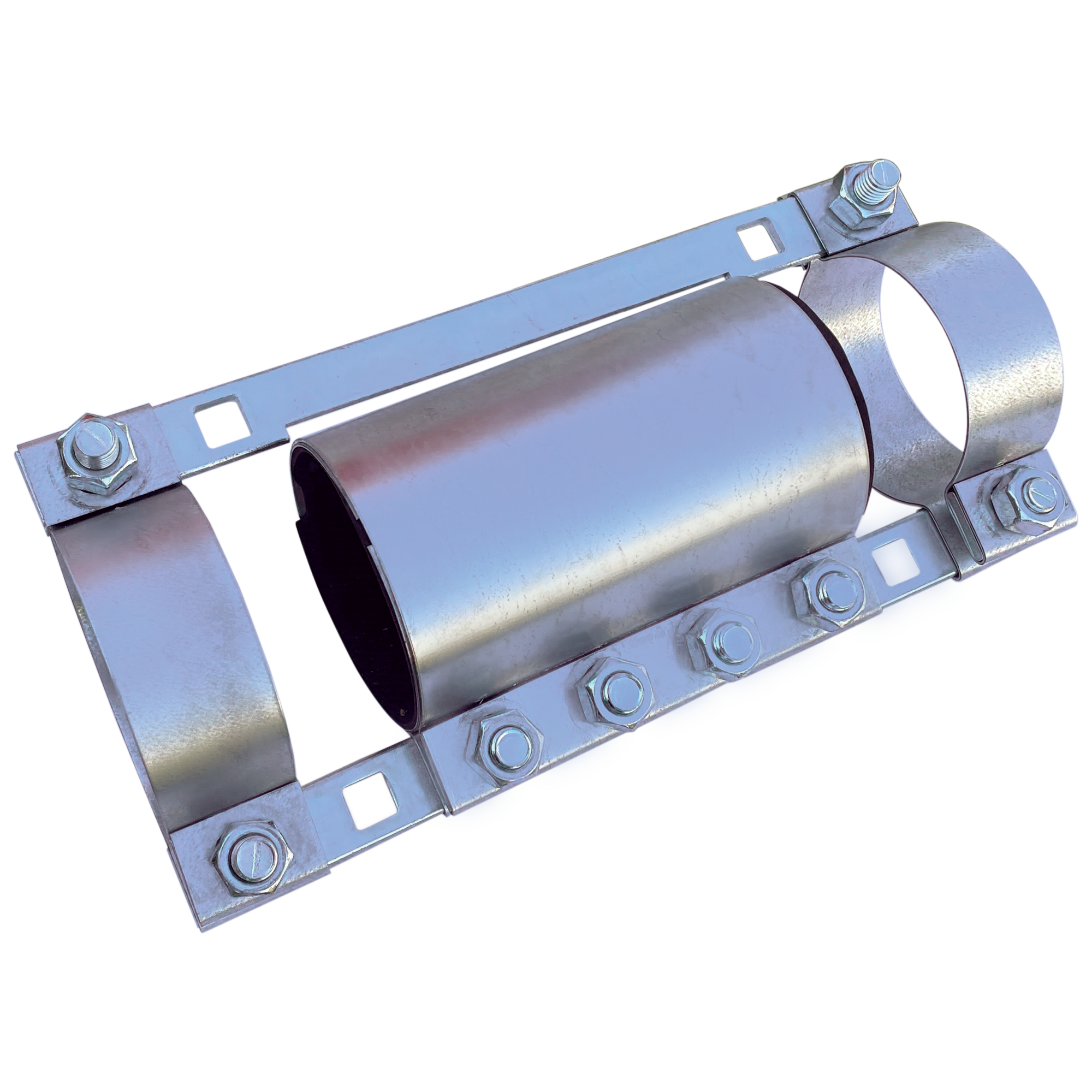

Side-Band Coupler

Side-Band Couplers are fully divisible compression couplers that can be used as a transition between dissimilar conduits such as HDPE to PVC, threaded & non-threaded metal conduit, or fiberglass (FRP) conduit. The dual-locking sidebands provide a high pull-out strength and maximum holding power to connect or repair conduit. Zinc-plated carbon steel bolts are included for tightening the Side-Band Coupler.
Side-Band Couplers are fully divisible compression couplers that can be used as a transition between dissimilar conduits such as HDPE to PVC, threaded & non-threaded metal conduit, or fiberglass (FRP) conduit. The dual-locking sidebands provide a high pull-out strength and maximum holding power to connect or repair conduit. Zinc-plated carbon steel bolts are included for tightening the Side-Band Coupler.

Features

  • Dual-locking side bands grip conduit to provide maximum holding power
  • Effective for applications involving high line vibration
  • One person installation
  • No special tools required
Ask your question
Side-Band Coupler

Technical Specifications

Part # Description Nominal OD (in.) OD Working Range (in) Pull Out Strength (lb) Packaging Shipping Weight/Case (lb)
20096167 4" Side-Band Coupler 4.5 4.490" - 4.510" 2000 Each 13.4
20096168 6" Side-Band Coupler 6.625 6.615" - 6.635" 1700 Each 16.9

Downloads

Specifications
SideBand Coupler TDS 11.24
