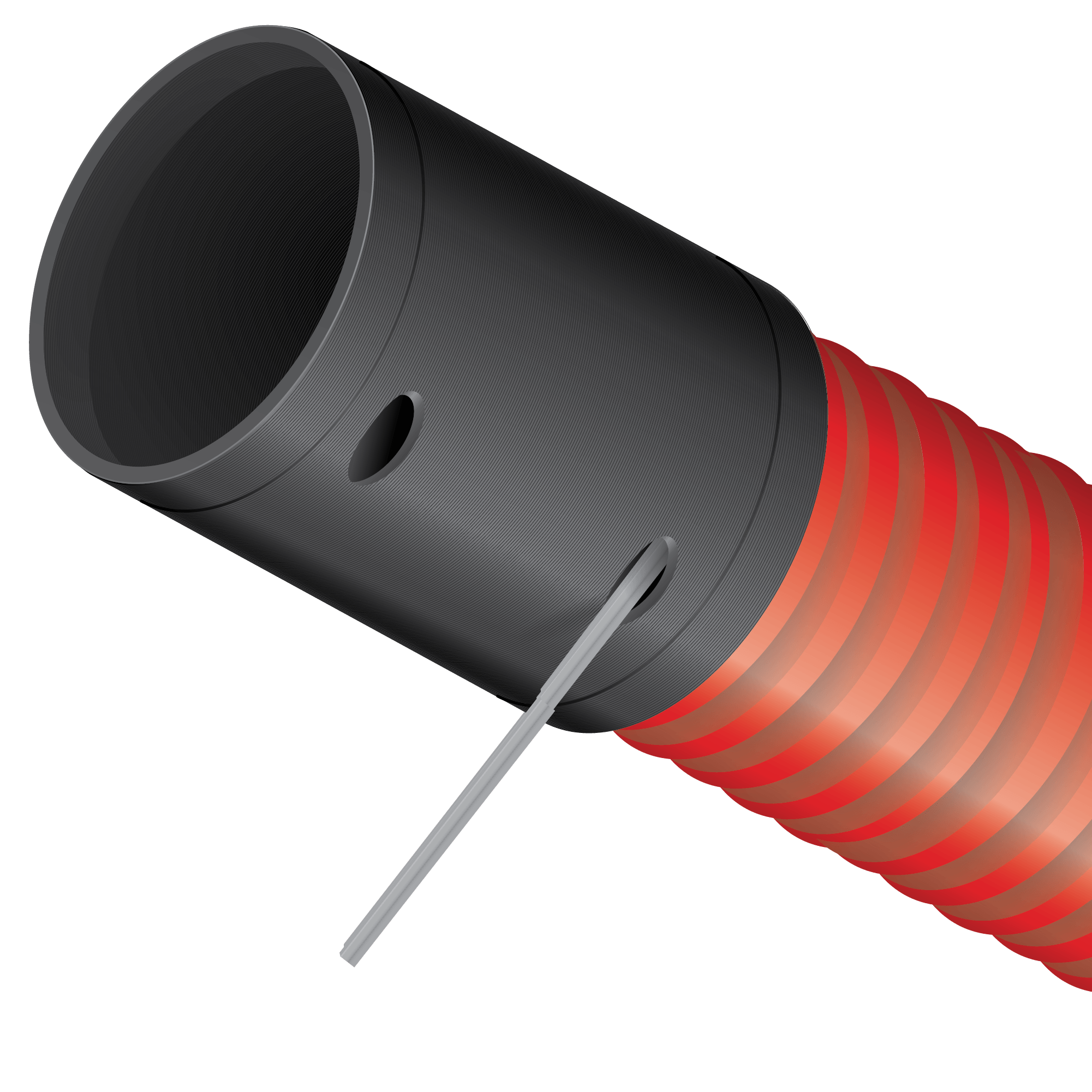

Smooth-Cor Flex Kit

Quick, field assembly couplers or adapters to join different material types
Quick, field assembly couplers or adapters to join different material types

Features

  • Two Kit options available for joining Smooth-Cor Flex:
  • Smooth-Cor Flex Coupler Kit joins Smooth-Cor Flex to Smooth-Cor Flex
  • Smooth-Cor Flex Adapter Kit joins Smooth-Cor Flex to HDPE, PVC, FRE, and TGS
  • Smooth-Cor Flex Coupler Kits include an O-ring gasket creating an air-tight and water-tight seal
  • Keylock strips secure the connection, no glue required
Ask your question
Smooth-Cor Flex Kit

Technical Specifications

Select Coupler Type

Straight
Straight
Transition
Part # Description Nominal OD (in.) OD Working Range (in) Packaging Amount of Items/Case
20000292 2.00" Smooth-Cor Flex Coupler Kit 2.495 - Case 10
20000293 3.00" Smooth-Cor Flex Coupler Kit 3.51 - Case 6
20000231 4.00" Smooth-Cor Flex Coupler Kit 4.73 - Case 4
20000286 2.00" Smooth-Cor Flex Adapter Kit - 2.495 - 2.375 Case 10
20000287 3.00" Smooth-Cor Flex Adapter Kit - 3.510 - 3.500 Case 6
20000252 4.00" Smooth-Cor Flex Adapter Kit - 4.730 - 4.500 Case 4

Downloads

Specifications
DL_SmoothCorFlex_Couplers_Adapters_11.24
Smooth-Cor Flex Adapter Instructions
Smooth-Cor Flex Coupler instructions

Other couplers

Shur-Lock II is a plastic coupler designed for coupling HDPE & PVC conduit. Can also be used to couple dissimilar conduits such as HDPE to PVC, threaded or non-threaded metal conduit, or fiberglass (FRP) conduit. The coupler features stainless steel band clamps (hand tightened using a 5/16" nut driver) and locking ring. A pre-lubricated O-ring forms an air-tight seal to withstand 125 PSI on 1" - 3" sizes. Also a specialized coupler for use by electrical installers requiring ETL/UL listing. Spreader Tools are available for sizes 3", 4", and 6" to aid in the installation process.

Shur-Lock II

Shur-Lock II is a plastic coupler designed for coupling HDPE & PVC conduit. Can also be used to couple dissimilar conduits such as HDPE to PVC, threaded or non-threaded metal conduit, or fiberglass (FRP) conduit. The coupler features stainless steel band clamps (hand tightened using a 5/16" nut driver) and locking ring. A pre-lubricated O-ring forms an air-tight seal to withstand 125 PSI on 1" - 3" sizes. Also a specialized coupler for use by electrical installers requiring ETL/UL listing. Spreader Tools are available for sizes 3", 4", and 6" to aid in the installation process.
Experience the same fast and easy installation of our Push-Lock couplers now with a new, clear body design. Simply push the duct ends into the coupler for a locked and air-sealed assembly. Slightly shorter than the original Push-Lock, the Clear-Lock is ideal for pull boxes, vaults or other limited access areas. The non-metallic construction provides excellent corrosion resistance in buried or encased applications and also has desirable dielectric properties.

Clear-Lock

Experience the same fast and easy installation of our Push-Lock couplers now with a new, clear body design. Simply push the duct ends into the coupler for a locked and air-sealed assembly. Slightly shorter than the original Push-Lock, the Clear-Lock is ideal for pull boxes, vaults or other limited access areas. The non-metallic construction provides excellent corrosion resistance in buried or encased applications and also has desirable dielectric properties.
The latest in Dura-Line's coupler collection, the Redi-Lock™ is ideal for joining lengths of HDPE Sticks but can also be used with continuous length, reeled products.

Redi-Lock

The latest in Dura-Line's coupler collection, the Redi-Lock™ is ideal for joining lengths of HDPE Sticks but can also be used with continuous length, reeled products.
The Split-Lock + is a split coupler produced from a glass fiber reinforced nylon resin. The coupler is heat and UV stabilized, and offers excellent impact strength. It’s reusable and is ideal for temporarily coupling conduits, particularly at slack-loop locations, and also for air-assisted jetting applications. The coupler is easily assembled using a 7/16” nut driver.

Split-Lock +

The Split-Lock + is a split coupler produced from a glass fiber reinforced nylon resin. The coupler is heat and UV stabilized, and offers excellent impact strength. It’s reusable and is ideal for temporarily coupling conduits, particularly at slack-loop locations, and also for air-assisted jetting applications. The coupler is easily assembled using a 7/16” nut driver.
Reverse-threaded aluminum coupler. Tapered threads accommodate a wide range of conduit OD's within a given conduit size. Also available in a Riser/Plenum rated version.

Aluminum Threaded

Reverse-threaded aluminum coupler. Tapered threads accommodate a wide range of conduit OD's within a given conduit size. Also available in a Riser/Plenum rated version.
The Clear-Lock Couplers and PinPoint Splices in one simple package. All the advantages of the Clear-Lock couplers with water-tight connectors for the PinPoint locatable duct in one simple kit. A 2.50" kit is also available with our new Redi-Lock coupler.

PinPoint Splice Kit

The Clear-Lock Couplers and PinPoint Splices in one simple package. All the advantages of the Clear-Lock couplers with water-tight connectors for the PinPoint locatable duct in one simple kit. A 2.50" kit is also available with our new Redi-Lock coupler.
The DC-10 Split coupler is a 2-piece aluminum coupler that provides a water-tight and air-tight connection in buried and underground applications with a high pull-out strength. The clam-shell design allows users to easily access the cable after the coupler is installed. A duct holder tool is also available to aid in installation.

DC-10 Split Coupler

The DC-10 Split coupler is a 2-piece aluminum coupler that provides a water-tight and air-tight connection in buried and underground applications with a high pull-out strength. The clam-shell design allows users to easily access the cable after the coupler is installed. A duct holder tool is also available to aid in installation.
Quick, field assembly couplers or adapters to join different material types

PowerGuard Flex Kit

Quick, field assembly couplers or adapters to join different material types
Side-Band Couplers are fully divisible compression couplers that can be used as a transition between dissimilar conduits such as HDPE to PVC, threaded & non-threaded metal conduit, or fiberglass (FRP) conduit. The dual-locking sidebands provide a high pull-out strength and maximum holding power to connect or repair conduit. Zinc-plated carbon steel bolts are included for tightening the Side-Band Coupler.

Side-Band Coupler

Side-Band Couplers are fully divisible compression couplers that can be used as a transition between dissimilar conduits such as HDPE to PVC, threaded & non-threaded metal conduit, or fiberglass (FRP) conduit. The dual-locking sidebands provide a high pull-out strength and maximum holding power to connect or repair conduit. Zinc-plated carbon steel bolts are included for tightening the Side-Band Coupler.
The Arctic-Lock™ Coupler is designed to withstand colder temperatures than the Clear-Lock Coupler. Arctic-Locks are designed with increased impact strength that greatly reduces the risk of cracking or shattering under installation force. The Arctic-Lock Coupler can withstand at least 35% higher impact than standard Clear-Lock Couplers (or 4.7 Jauls impact at -18C). The non-metallic construction provides excellent corrosion resistance in buried or encased applications and also has desirable dielectric properties.

Arctic-Lock

The Arctic-Lock™ Coupler is designed to withstand colder temperatures than the Clear-Lock Coupler. Arctic-Locks are designed with increased impact strength that greatly reduces the risk of cracking or shattering under installation force. The Arctic-Lock Coupler can withstand at least 35% higher impact than standard Clear-Lock Couplers (or 4.7 Jauls impact at -18C). The non-metallic construction provides excellent corrosion resistance in buried or encased applications and also has desirable dielectric properties.
A low-cost push-on coupler with a molded rubber gripping insert. Can be used on HDPE, PVC, Fiberglass (FRE), and metal conduit. Transition couplers are used to join ducts with different outside diameters.

E-LOC

A low-cost push-on coupler with a molded rubber gripping insert. Can be used on HDPE, PVC, Fiberglass (FRE), and metal conduit. Transition couplers are used to join ducts with different outside diameters.
A simple coupler to install and ideal where higher pull-out strengths are needed. The molded rubber gripping insert creates a water-tight and air-tight seal, while the additional screws aid to increase the pull-out strength.

E-LOC Plus

A simple coupler to install and ideal where higher pull-out strengths are needed. The molded rubber gripping insert creates a water-tight and air-tight seal, while the additional screws aid to increase the pull-out strength.
The Double E-LOC versions are suitable for cable blowing applications and are UV resistant for aerial use.

Double E-LOC

The Double E-LOC versions are suitable for cable blowing applications and are UV resistant for aerial use.
The Mor Clamp coupling is quickly and easily installed by slipping onto or wrapping around a conduit joint. The thick neoprene gasket assures a positive butt joint seal. It accommodates a variety of conduit types including HDPE, cast iron, PVC, and fiberglass. The stainless steel design offers a lightweight and economical unit which is strong and durable. Zinc plated carbon steel bolts are included for tightening the Mor Clamp coupling.

Mor Clamp

The Mor Clamp coupling is quickly and easily installed by slipping onto or wrapping around a conduit joint. The thick neoprene gasket assures a positive butt joint seal. It accommodates a variety of conduit types including HDPE, cast iron, PVC, and fiberglass. The stainless steel design offers a lightweight and economical unit which is strong and durable. Zinc plated carbon steel bolts are included for tightening the Mor Clamp coupling.
Used to join and seal length of HDPE and PVC Duct. The internal double compression seal is created as the end caps are tightened. NOTE: PVC compression couplers are not recommended for high-pressure air or gas lines, or applications requiring high pull-out resistance.

Compression Coupler

Used to join and seal length of HDPE and PVC Duct. The internal double compression seal is created as the end caps are tightened. NOTE: PVC compression couplers are not recommended for high-pressure air or gas lines, or applications requiring high pull-out resistance.
Used with Armor Guard Conduit, the Armor Guard Kit is comprised of a Split-Lock + Coupler, a ScotchLok shield connector, and bonding braid for bonding and grounding the armored layer in the duct. This coupler arrangement is suitable for cable blowing applications.

Armor Guard Kit

Used with Armor Guard Conduit, the Armor Guard Kit is comprised of a Split-Lock + Coupler, a ScotchLok shield connector, and bonding braid for bonding and grounding the armored layer in the duct. This coupler arrangement is suitable for cable blowing applications.
